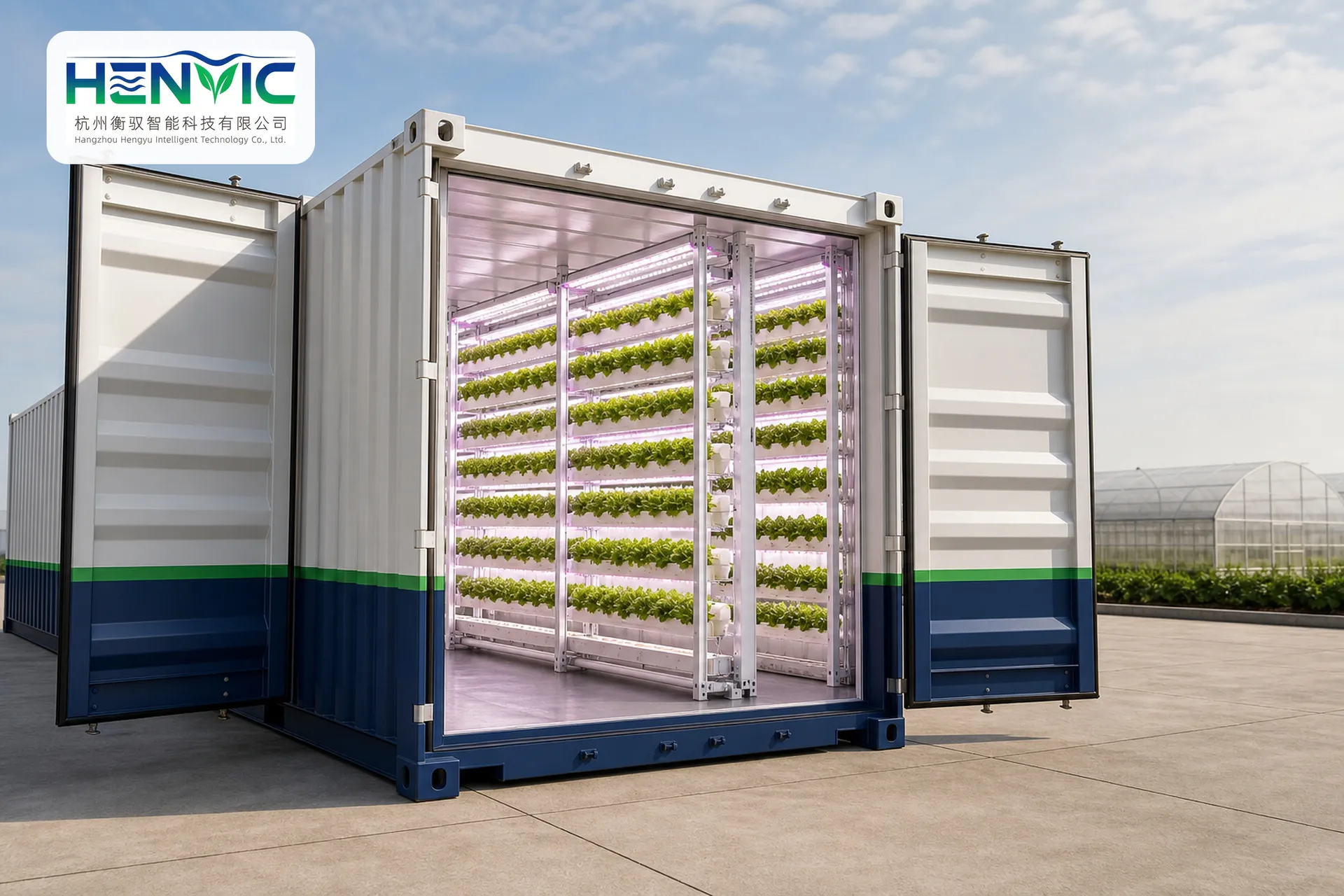

Seedling/Mini-Vegetable Production Container
Product illustration: images/vegetable/HVC-V09.jpg (Seedling Production Rack)
I. Product Overview

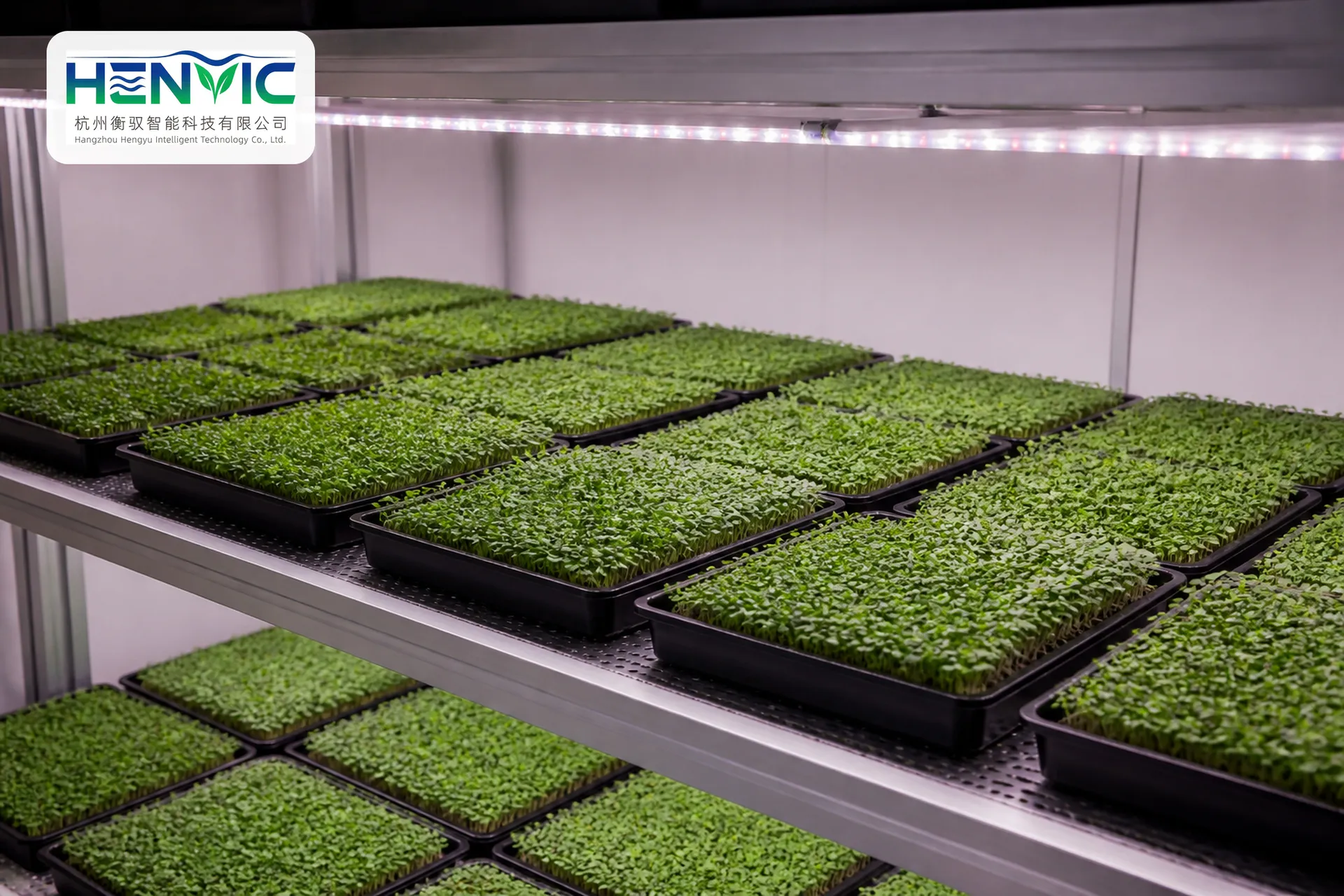

Seedling and micro-vegetable cultivation involves an extremely short production cycle (7–14 days) and demands high standards for cleanliness, temperature and humidity control, as well as uniform light distribution. The HVC-V09 system employs a multi-layer pallet rack system combined with a clean air supply solution to enable efficient, high-turnover production of clean seedlings and micro-vegetables.
II. Core Competitive Advantages
● Very short growing cycle: Harvest can be obtained within 7–14 days; annual production can consist of more than 25 batches.
● Clean air supply: Primary and medium-efficiency filtration systems reduce mold growth risks.
● Uniform supplemental lighting: Interlayered light strips ensure even illumination across all layers, resulting in uniformly tall seedlings.
● Standard pallets: Uniform pallet specifications ensure standardized handling throughout the entire process – from sowing and germination to harvesting.
III. Typical Technical Specifications
project | parameter |
outline dimension | 12000 × 2438 × 2896 mm (40 feet) |
Number of cultivation layers | 5–6-tier pallet rack |
growth cycle | 7–14 days |
Temperature control range | 20–25 ℃（±1 ℃） |
relative humidity | 65%–80% RH |
beam | LED 100–250 μmol/(m²·s) |
air purity | Primary + Medium Efficiency Filtered Air Supply |
installed power | 10–15 kW |
source | 380 V / 50 Hz Three-phase |
IV. System Configuration
Multi-layer standard pallet rack; cleanroom air supply and filtration unit; constant-temperature dehumidification and humidification module; interlayer LED lighting strip; timed spraying/irrigation system; drainage and washable flooring; intelligent control cabinet.
V. Applicable Varieties
Sprouted vegetable crops such as pea sprouts, radish sprouts, Chinese toon sprouts, and buckwheat sprouts, as well as micro-vegetables including broccoli sprouts and sunflower sprouts.
VI.适用场景
Specialized production of seedling vegetables; urban agriculture micro-farms; direct supply to supermarkets and catering establishments.
VII. Delivery and Installation
Products are shipped in full cases; commissioning will be completed within 3 working days following on-site hoisting and electrical connection; operational procedures for sowing, germination induction, and environmental management shall be provided.
VIII. After-Sales Service
12-month overall warranty; filter consumables supply, remote maintenance and operation services, and process parameter updates.
