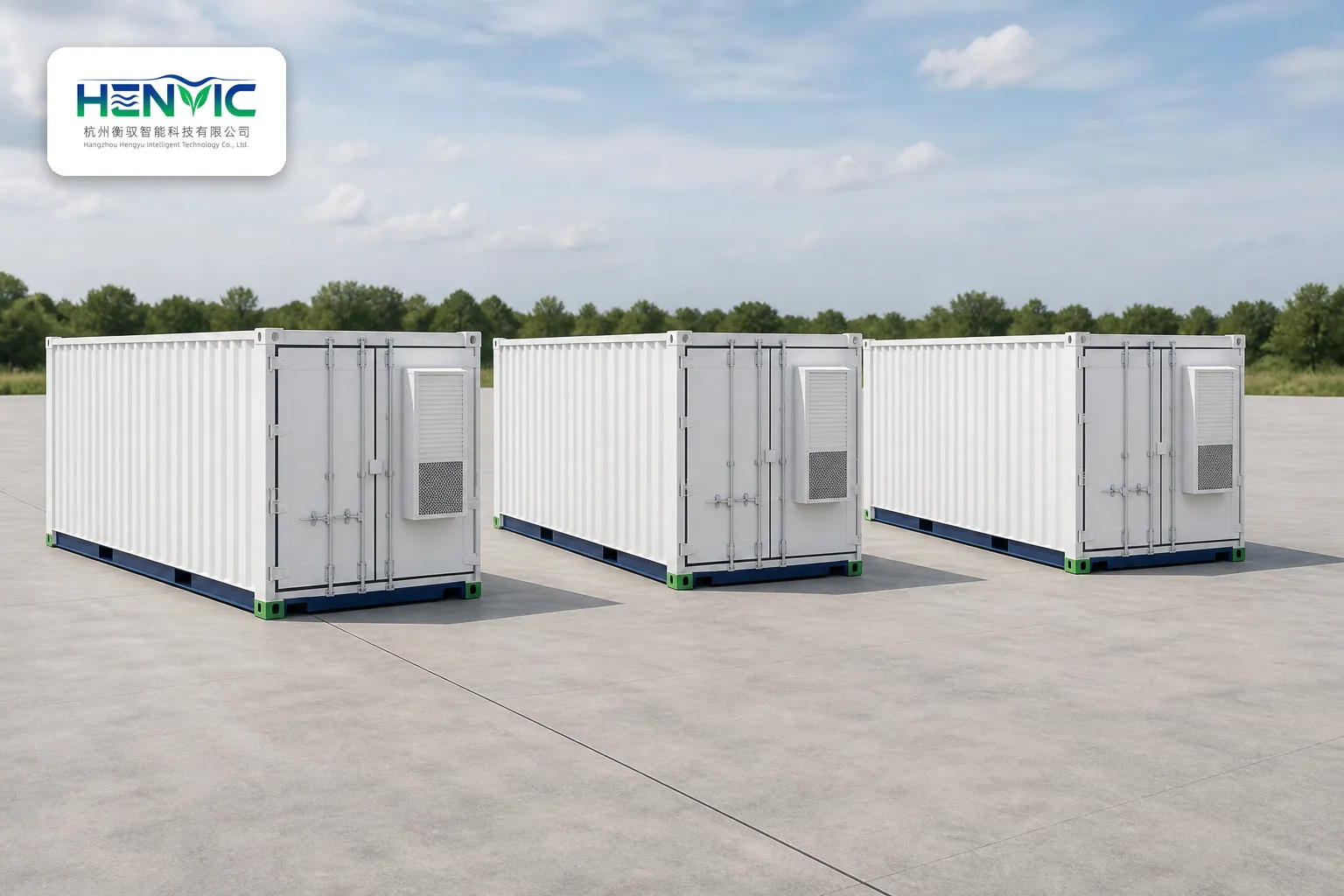

Button Mushroom Cultivation Container Smart Flagship

1. Product Overview

Button mushrooms are grown on a casing layer and release substantial CO2 and heat during cropping, while bed surfaces are prone to temperature and humidity stratification. This model combines a high-efficiency heat-exchange fresh-air module with inter-tier directional ducting to keep air, temperature and humidity uniform and eliminate dead corners.

 2. Key Advantages

• Sensible heat-exchange fresh-air unit recovers cooling from exhaust, cutting the fresh-air load

• Inter-tier directional ducting covers the whole bed surface and removes dead corners

• Corrosion-resistant panels and stainless fasteners for the wet casing environment

• Side doors and removable racks that simplify casing and emptying operations

 3. Technical Specifications

项目 / Item	参数 / Specification
型号 / Model	HVC-M8E
外形尺寸 / Dimensions	12000 × 2438 × 2896 mm（40 尺标准箱）  /  12000 x 2438 x 2896 mm (40 ft ISO container)
有效栽培面积 / Effective cultivation area	50–65 m²  /  50-65 m2
层架配置 / Rack configuration	4–5 层不锈钢出菇架，配自动巡检接口  /  4-5 tier stainless racks with automatic inspection interface
温度控制范围 / Temperature range	16-20 ℃ (±0.5 ℃)  /  16-20 degC (+/-0.5 degC)
相对湿度 / Relative humidity	85-92% RH
CO₂ 浓度 / CO₂ concentration	800-1500 ppm
光照 / Lighting	0-300 lux（可调 / adjustable）
栽培周期 / Cultivation cycle	35–50 天  /  35-50 days
装机功率 / Installed power	14–18 kW  /  14-18 kW
电源 / Power supply	380 V / 50 Hz 三相（可按目的国电压定制）  /  380 V / 50 Hz, 3-phase (customisable to destination-country voltage)
箱体传热系数 / Enclosure U-value	≤0.30 W/(m²·K)  /  <= 0.30 W/(m2.K)
控制系统 / Control system	全自动控制 + 云端数据平台 + AI 配方自学习 + 手机 APP  /  Fully automatic control with cloud data platform, self-learning AI recipes and a mobile app
主栽品种 / Primary species	双孢菇（Agaricus bisporus）  /  Button Mushroom (Agaricus bisporus)



4. System Configuration

Standard configuration: Sensible heat-exchange fresh-air unit, refrigeration unit, inter-tier air ducts, casing bed racks, corrosion-resistant lining, humidification system, drainage and washdown system, and an intelligent control cabinet.

Enclosure and integration: 12000 x 2438 x 2896 mm (40 ft ISO container); racks: 4-5 tier stainless racks with automatic inspection interface; control: Fully automatic control with cloud data platform, self-learning AI recipes and a mobile app.

 5. Suitable Species

Primary species: Button Mushroom (Agaricus bisporus). Cultivation method: composted substrate with a casing layer. Compost fermentation and casing preparation happen outside the container; plan a fermentation tunnel and casing storage area alongside.

 6. Application Scenarios

Industrial button mushroom bases, edible-fungus industrial parks, and circular-agriculture projects. This is the Smart Flagship configuration; Unattended operation with full parameter traceability; suits multi-site remote management.

7. Delivery & Installation

• Factory: the enclosure, refrigeration unit, piping and electrical systems are assembled and bench-tested in our factory, followed by a 96-hour continuous operation test, with a test record supplied with the shipment.

• Transport: the enclosure matches standard ISO container dimensions and can be shipped as ordinary container cargo under FOB, CIF or DAP terms.

• On site: our engineers or authorised partners provide positioning guidance, utility connection, commissioning and operator training, normally within 5 working days.

• Deliverables: the complete unit, printed and electronic bilingual operation manuals, a PLC programme backup, crop parameter recipes, and the factory test report.

8. After-Sales Service

• Warranty: 12 months on the complete unit from acceptance, with optional extended coverage for the core refrigeration unit and control system.

• Response: repairs acknowledged within 24 hours on business days, with a solution proposed within 72 hours for critical faults.

• Remote operations: remote diagnostics, recipe and parameter upgrades, data dashboards and energy analysis (standard on the Smart Flagship configuration, optional on the others).

• Spare parts and upgrades: long-term supply of genuine parts, filters and consumables, plus control-system and technology upgrades.

• Training and cultivation support: operator, maintenance and cultivation-process training, with continuously updated crop parameter packs.
